Stainless steel tees as heat-resistant fittings for high-temperature applications
Stainless steel tees are fittings used to create branches on existing pipelines – reliably, in compliance with the relevant standards and with lasting load-bearing capacity. The tees from WITTE HiTEMP are specifically designed for use under extreme thermal and chemical conditions. As heat-resistant fittings, they combine, split or branch pipe flows – reliably even under continuous high-temperature loads.
Made of proven stainless, high-temperature-resistant materials, our stainless steel tees offer a stable solution wherever standard fittings reach their thermal or chemical limits.
Which dimensions and materials are in stock?
WITTE HiTEMP stocks heat-resistant stainless steel tees in a wide range of dimensions, so many sizes are available at short notice. We can provide further dimensions through our worldwide network. We permanently stock tees in the following high-temperature materials:
● 1.4841 – seamless tees, 21.3 to 219.1 mm outside diameter
● 1.4845 – seamless tees, 21.3 to 219.1 mm outside diameter
● 1.4878 – tees for applications with combined temperature and oxidation requirements
Get in touch. We will be happy to advise you on availability, dimensions and delivery times.
To which standards are the tees manufactured and certified?
Our heat-resistant tees are manufactured to internationally recognised standards and are supplied as standard with inspection certificates to EN 10204. They meet DIN/EN and ASME requirements and can be used worldwide. Individual testing and documentation to customer-specific requirements are available on request. Our tees are available to the following standards, among others:
● EN 10253-4 A/B and EN 10253-3 – stainless steel pipe fittings
● ASTM A 403 and ASME B16.9 – for international use
● SEW 470 – for high-temperature-resistant materials
● Manufacture to drawing from bar stock – for individual special requirements
Equal or reducing branches – which designs are available?
Our stainless steel tees are available in different designs, allowing flexible adaptation to different pipeline layouts:
● Equal tee = main and branch diameters identical
● Reducing tee = smaller branch for branched systems with different nominal sizes
Both designs can be combined directly with our heat-resistant pipes and elbows made of the same high-temperature materials, forming the basis for complete, perfectly matched piping systems.
A special fitting: the barred tee
In piping systems in the food and pharmaceutical industries, cleaning is often carried out with a so-called pig: a small, rocket-shaped cleaning device that is driven through the lines by applied pressure. The challenge with conventional tees is that the pig can become jammed in the branch. The result: the line is blocked and the cleaning process is interrupted.

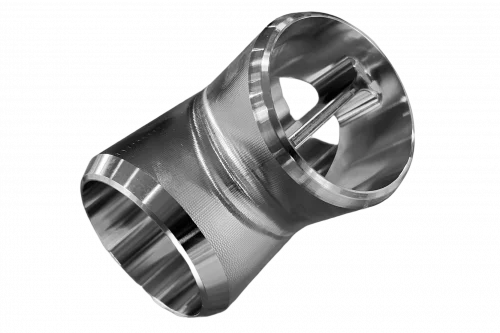

The barred tee (piggable tee) with an integrated bar reliably solves this problem. A specially designed bar inside the fitting prevents the pig from jamming and ensures an uninterrupted passage through the entire pipeline.
Machined from a solid block with a constant inside diameter, this component combines high manufacturing precision with clear practical benefits for hygienically demanding plants.
